BierBot Brick 2 Brewing Controller
  • BierBot Brick 2 Brewing Controller
  • BierBot Brick 2 Brewing Controller
  • BierBot Brick 2 Brewing Controller
  • BierBot Brick 2 Brewing Controller
BierBot Brick 2 Brewing Controller

BierBot Brick 2 Brewing Controller

€199,00

The BierBot Brick is a cost effective way to monitor and control your brewing and fermentation processes. The Brick is the hardware heart of this platform, providing two WiFi smart switches (capable of outputting up to 15A/3500W together) with an integrated temperature sensor that is controlled via a custom built brewing web application, available from any web browser. From your user account at the BierBot website, you can create and store your own recipes which are used to automate your mash, boil, and fermentation steps.

The Bierbot Brick performs datalogging during your brew session, showing real-time temperatures and critical information via a pleasing user interface. You can store your pre-boil, post-boil, and post-fermentation wort gravity and volume for each batch, and add comments to your brewing log for later review.

With several BierBot Bricks 2, you can also switch higher loads or automate several devices in your brewery.

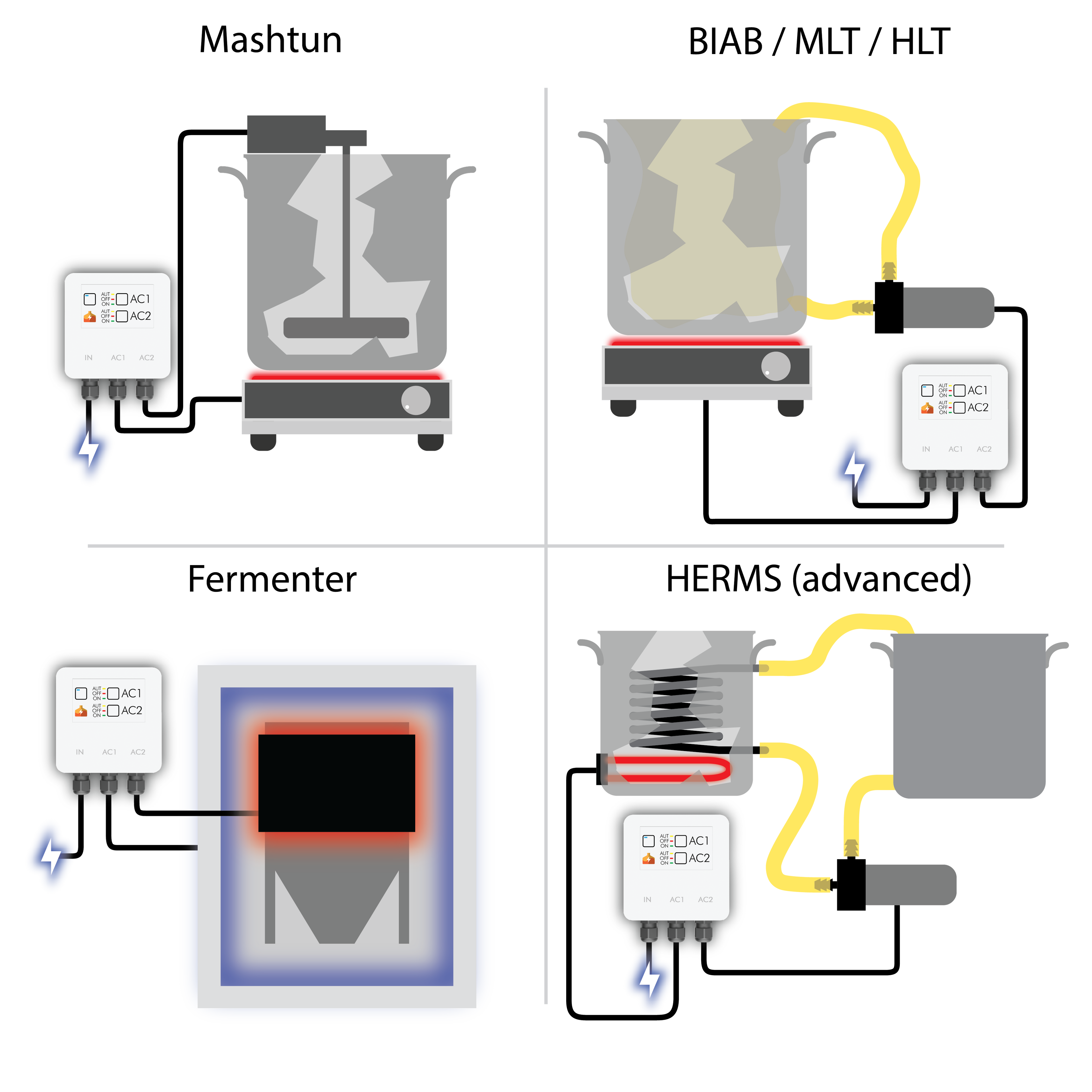

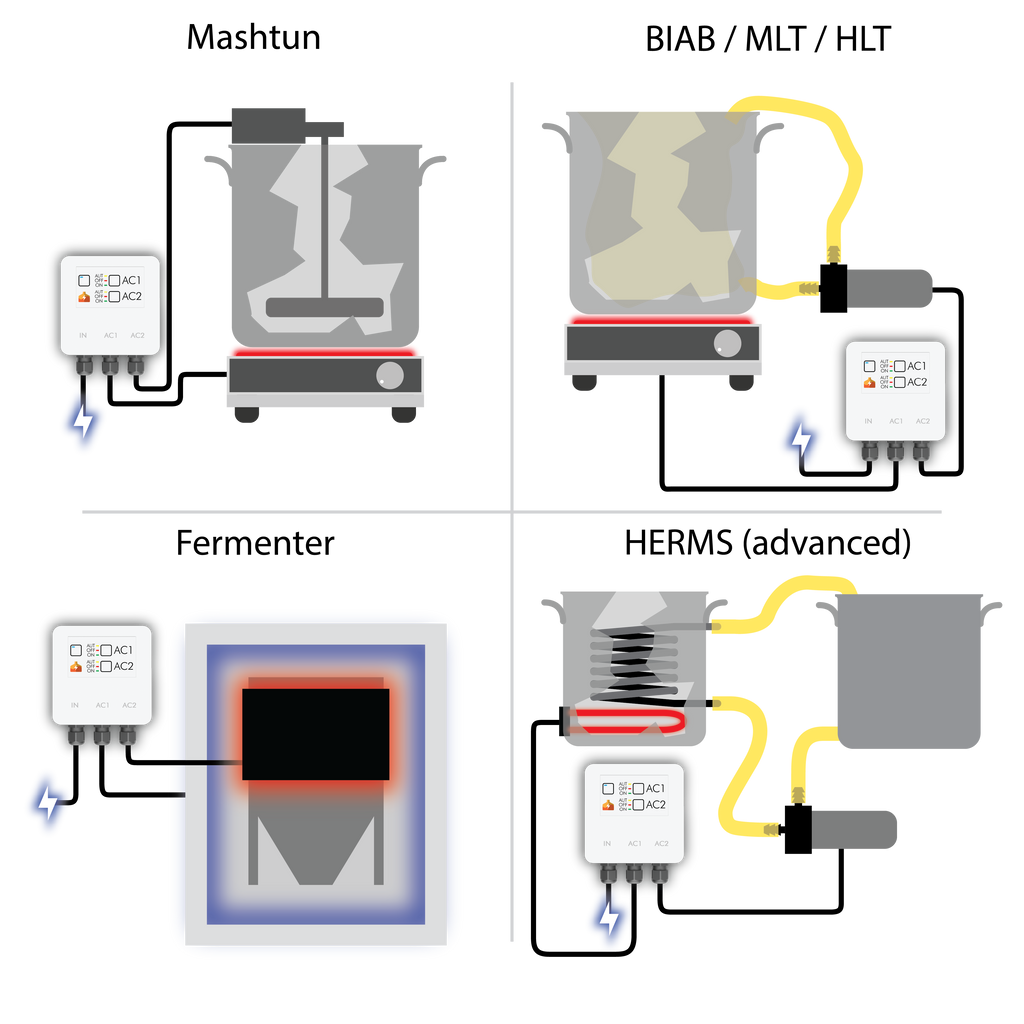

As the Brick 2 now has two outputs, the following scenarios are possible:

Mash kettle: AC1 for heating, AC2 for the agitator.
BIAB: AC1 controls the heating, AC2 controls the pump.
Fermenter (refrigerator): AC1 controls the heating mat, AC2 controls the cooling (glycol or refrigerator).
HERMS: AC1 controls the HLT heating rods (if you have more than 3.5kW heating power, you can use several bricks), AC2 controls the MLT pump through HLT.

The documentation with many pictures is available at https://docs.bierbot.com. The software itself is available at https://bricks.bierbot.com

Specifications:

Cable lengths: AC input 1m, AC output 1m each, temperature sensor 2 m
Input: 100-240V @ 50/60Hz, 15A max
Output: 100-240V @ 50/60Hz, 15A combined (AC1 + AC2) max
2.4GHz WiFi 802.11 b/g/n
DS18B20 temperature sensor, accuracy 0.1°C
CE certified, RoHS certified

Included in delivery:

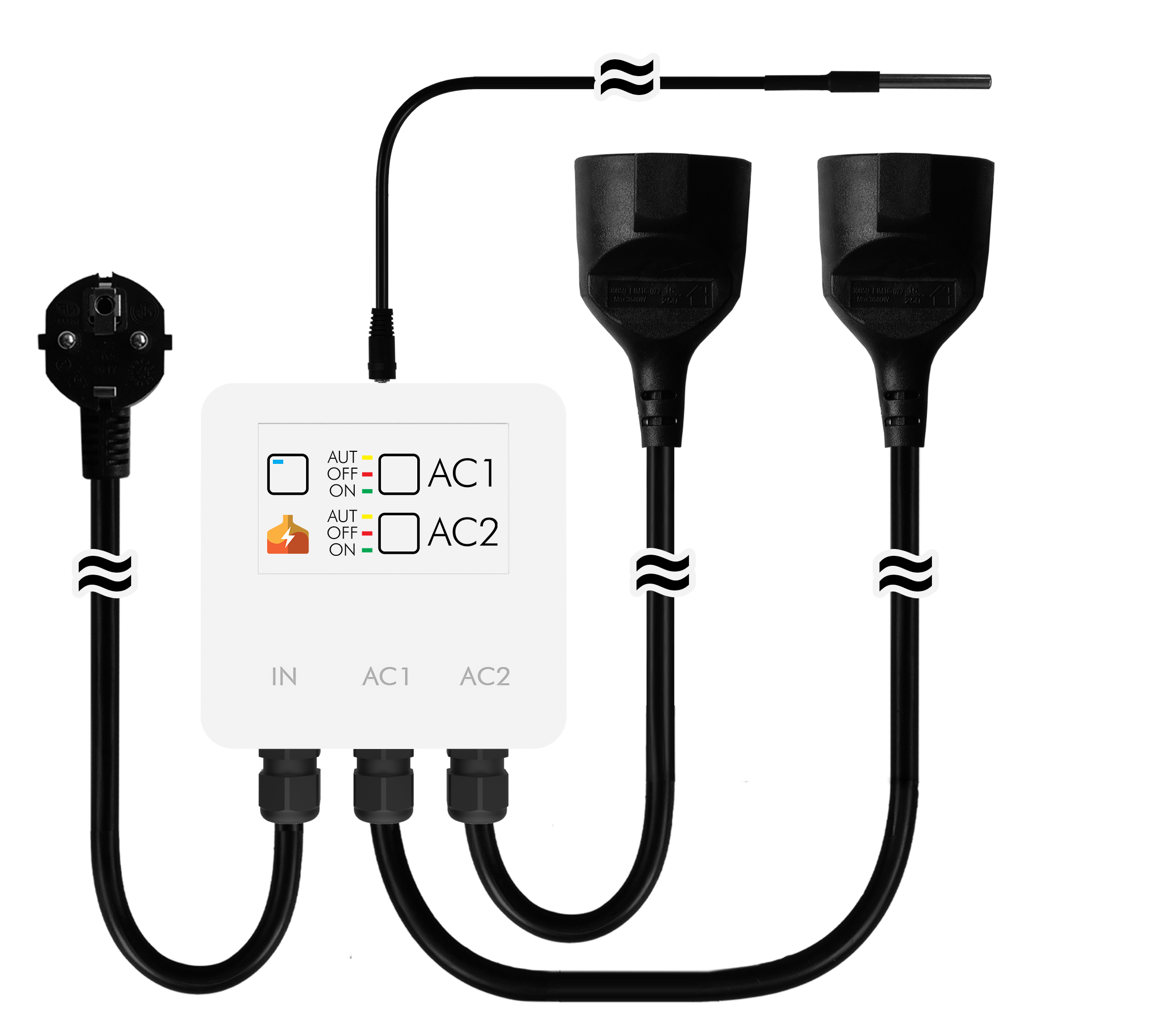

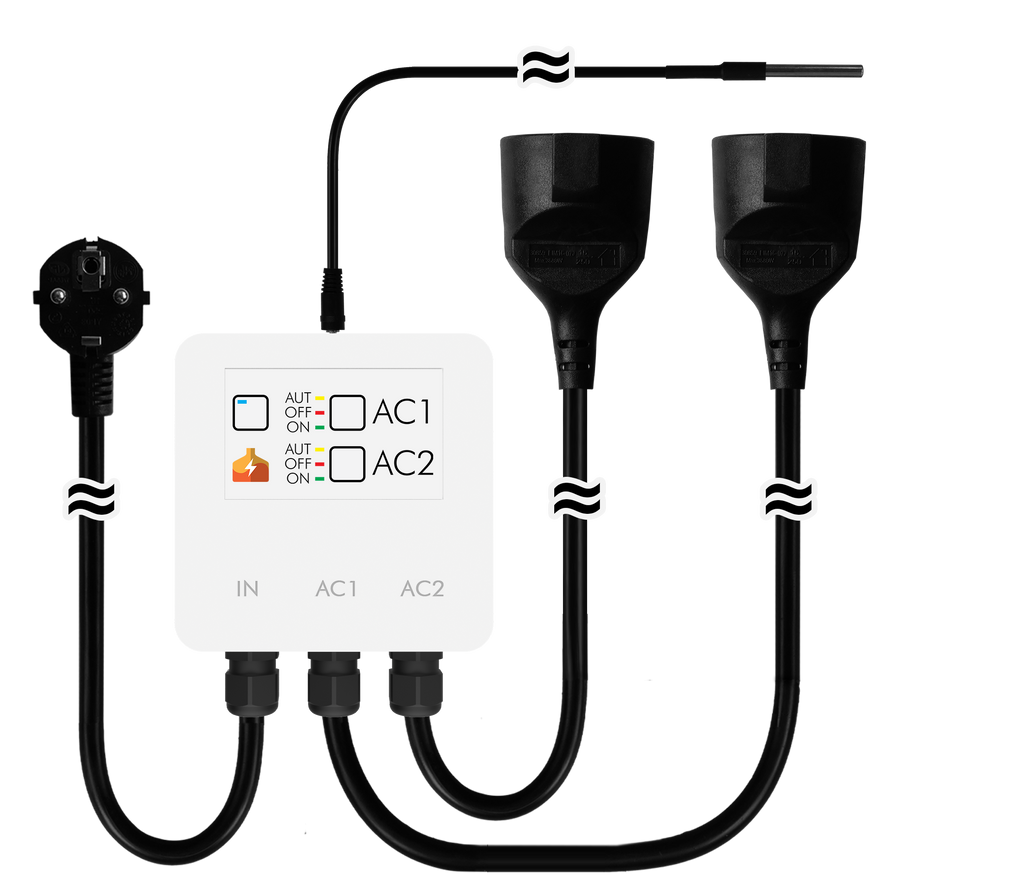

1 BierBot Brick 2 brewing controller pre-wired with Schuko plug and two sockets
1 DS18B20 temperature sensor
1 instruction manual

Requirements:

One Brick 2 can control two devices, i.e. one heating and a pump
An internet connection via WIFI network (2.4GHz WiFi 802.11 b/g/n)
A free user account at https://bricks.bierbot.com
